Class B RV Floor Plans in 2026: Which Layout Works Best?
A practical guide to rear bath, twin-bed, rear-lounge, front-lounge, and gear-garage layouts using current 2026 model examples.
Last updated: May 23, 2026 | Read time: 11 minutes
TL;DR
- Must-know: The best Class B floor plan is usually a bed-and-bath screening decision first, not a brand decision.
- Trip killers: Based on owner feedback and field testing, the top frustration sources are tiny wet baths, nightly bed conversion, and weak storage access.
- Best for: Twin beds suit couples with different sleep schedules. Rear lounges suit travelers who prioritize daytime seating. Raised rear beds suit gear-heavy trips. Front lounges suit remote work and longer stays.
- Confirm before you go: Model-year specs, MSRP, bed dimensions, and exact bath layout can change during the year. Verify the current floorplan page before you buy.
Class B Floor Plan Decision Matrix
Use this matrix to match your travel style to a layout pattern that reduces daily friction. This matrix covers layout fit only. It does not evaluate budget, payload capacity, off-grid systems, tank sizes, drivetrain, or accessibility needs. Those factors matter and should be evaluated separately.
| Traveler Type | Recommended Layout | Best Use Case | Watch-Outs |
|---|---|---|---|
| Solo traveler | Rear lounge or twin-bed layout | Flexible daily living and easier storage | Can feel tight if carrying bikes or large gear |
| Couple | Twin beds or convertible rear lounge | Better sleeping flexibility and usable daytime space | Convertible beds require setup every night |
| Couple plus occasional guest | Front lounge plus convertible rear bed | Works for rare guests without upsizing | Do not buy based on guest use alone |
| Full-timers | Fixed bed or easy-convert twin layout | Less daily setup and better routine | Storage and tank capacity matter more than looks |
| Weekenders | Open lounge or flexible convertible layout | Short trips and casual use | May lack long-trip storage |
Best Class B layout for solo travelers
Solo travelers usually get the most flexibility from a rear lounge or a twin-bed layout where one bed doubles as a work surface during the day. The key advantage is not needing to coordinate space with a second person. A convertible rear lounge creates zero friction because the only person affected by nightly conversion is you. If you carry bulky gear, a raised rear bed with a garage underneath is also worth testing.
Best Class B layout for couples
For couples, the twin-bed layout with a rear wet bath remains the most practical starting point. It lets both people get up, use the bathroom, and start mornings without climbing over each other. A convertible rear lounge works too if daytime seating matters more than sleep convenience, but expect a short reset routine every night. Either way, test the morning routine in person before you sign anything.
The best Class B RV floor plan in 2026 depends less on brand and more on where you want the bed, bath, and storage. Current lineups from Winnebago, Airstream, Jayco, Pleasure-Way, and Roadtrek still cluster around four practical layouts, and each solves a different travel problem.
Purpose: This guide compares the most common Class B RV floor plans, shows real 2026 examples, and explains which layouts make the most sense for couples, solo travelers, remote workers, and boondockers.
Model-year note: Manufacturer pages can change during the year. Where pricing or layouts are mentioned below, check the linked factory page again before you sign anything.
Chuck Price has spent 35+ years camping and traveling by RV, including full-time travel in a Class B motorhome. He writes Boondock or Bust from a practical buyer’s point of view, with a strong bias toward real-world livability over showroom hype.
Start with the three things you use every day
The smartest way to compare Class B floor plans is to rank your daily friction points first. In 2026, official model pages from Winnebago, Airstream, Jayco, Pleasure-Way, and Roadtrek still show the same core trade-off: the more room you give to the bed, bath, or garage, the less flexible the rest of the van becomes. That matters most for couples, longer trips, and off-grid travel where bad layout choices show up fast.
Before you compare brands, answer these three questions:
- Do you want to make the bed every night, or leave it ready?
- Do you want the bathroom to be as small as possible, or more usable?
- Do you need interior cargo access for bikes, boards, tools, dog crates, or bulky camp gear?
If you want more broad Class B context before choosing a layout, start with the Boondock or Bust Class B RV hub and then compare this page against the site’s 2026 Class B model analysis.

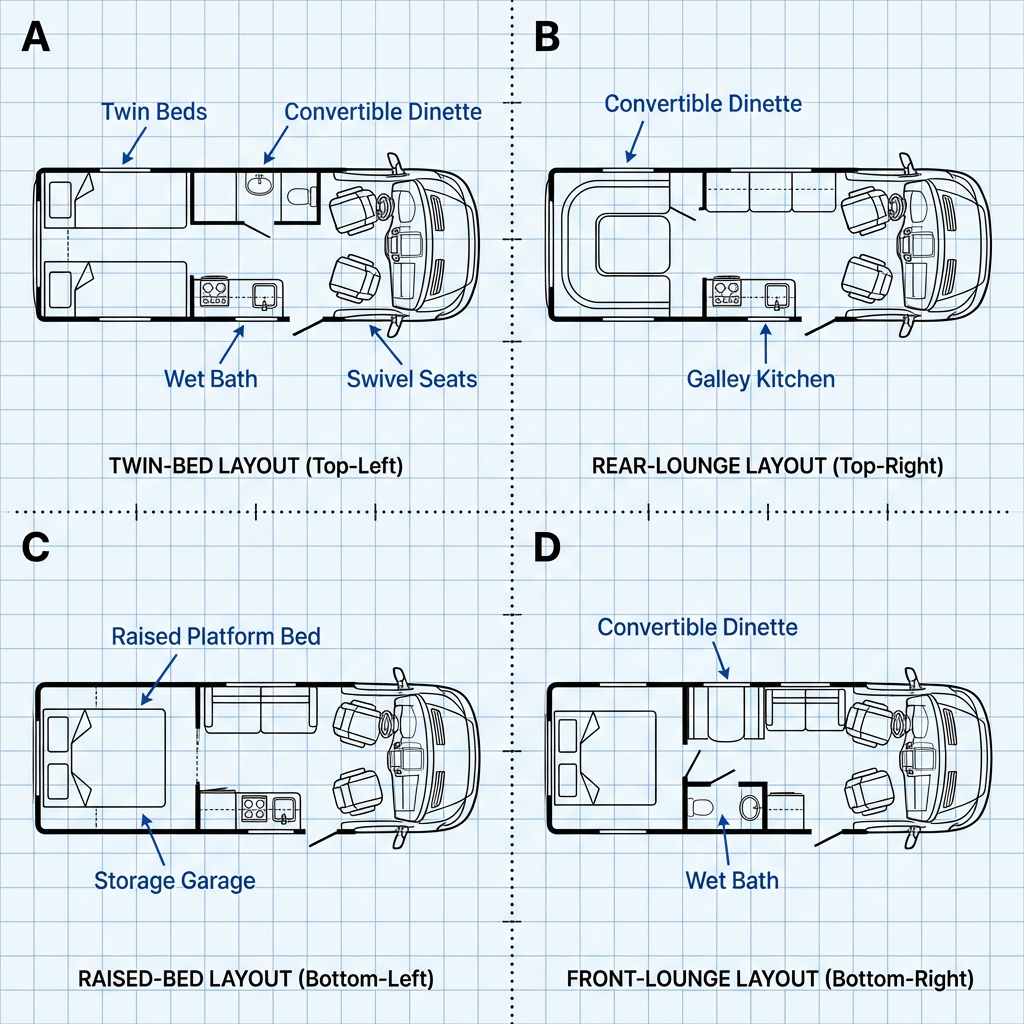

Four layout patterns that dominate 2026 Class B vans
Based on a review of current model-year product pages from Winnebago, Airstream, Jayco, Pleasure-Way, and Roadtrek (all accessed May 2026), most true Class B vans still group into four practical patterns: twin beds with a rear wet bath, rear lounge that converts into a bed, fixed or raised rear bed with storage below, and front lounge plus rear sleeping arrangement. Search terms like “front bed” or “front lounge” usually map into these same four categories rather than adding a fifth pattern. The exact cabinetry changes by brand, but the daily use case usually stays the same.
| Layout pattern | How it usually works | Best use case | 2026 model examples | Main trade-off |
|---|---|---|---|---|
| Twin beds + rear wet bath | Two singles often convert to one larger bed. Bathroom stays at the rear. | Couples who want aisle access and less nightly conflict. | Winnebago Travato 59K, Jayco Swift 20T, Roadtrek Play | Less open daytime seating than a rear lounge. |
| Rear lounge converts to bed | The back of the van is your social zone by day and sleeping zone by night. | Travelers who value hanging out inside more than keeping a bed made. | Airstream Interstate 19GT, Pleasure-Way Plateau FL | You reset the rear of the van every night unless you leave it in bed mode. |
| Fixed or raised rear bed | A permanent rear sleep zone sits over storage or a gear area. | Boondockers, gear-haulers, and buyers who hate bed conversion. | Pleasure-Way Plateau XLRB, Winnebago Revel 44E | Less flexible seating space inside the van. |
| Front lounge + rear sleep zone | The front of the van becomes a second work or dining area while the bed stays toward the rear. | Remote workers and longer-stay travelers who want two usable zones. | Pleasure-Way Plateau FL, Pleasure-Way Plateau RB | Usually costs more and often pushes you into a longer chassis. |
2026 model examples worth studying before you tour a van
Model examples matter because floor plan labels are not standardized. One brand’s “rear bath” coach can feel open and usable, while another feels cramped even at a similar length. The 2026 pages below are useful because each shows a clear version of a common Class B layout. Use them as layout references first. Then decide which brand details you care about.
Layout descriptions below are based on manufacturer product pages accessed May 2026. Floorplans, bed sizes, and configurations can change during the model year. Verify on the linked factory page before you buy.
| Model | Length | Manufacturer-listed layout cue | Best fit |
|---|---|---|---|
| Winnebago Travato 59K | 21′ | Twin beds convert to a queen with a rear wet bath. | Couples who want simple sleeping access in a shorter van. |
| Jayco Swift 20T | 20′ 11″ | Kitchen up front, twin beds that convert to a king midship, rear wet bath. | Buyers who want a familiar, efficient couple’s layout. |
| Airstream Interstate 19GT | 19′ | Compact rear lounge and sleeping space inside a 19-foot footprint. | Travelers who care about compact size and polished road-trip comfort. |
| Pleasure-Way Plateau FL | 22′ 9″ | Front lounge and workstation plus rear power sofa that becomes twins or a queen. | Remote workers and travelers who want two separate hangout zones. |
| Pleasure-Way Ontour 2.2 AWD | 21′ 10″ | Dedicated bathroom compartment and queen-sized bed in a longer AWD package. | Buyers who want more bathroom comfort without going to a bigger coach class. |
| Roadtrek Play | 20′ 9″ | Open-concept center aisle, wet bath with marine toilet, and twin beds that convert to a king. | Travelers who want more open walk-through space and accessible storage. |
| Winnebago Revel 44E | 19′ 7″ | Power lift bed over a gear garage with a wet bath and flexible galley. | Boondockers and buyers hauling bikes, boards, or outdoor gear. |
If off-grid use is high on your list, compare this page with Boondock or Bust’s best Class B RVs for boondocking in 2026 guide. Floor plan only solves part of the problem. Battery, water, heating, and storage matter just as much once you stop plugging in every night.

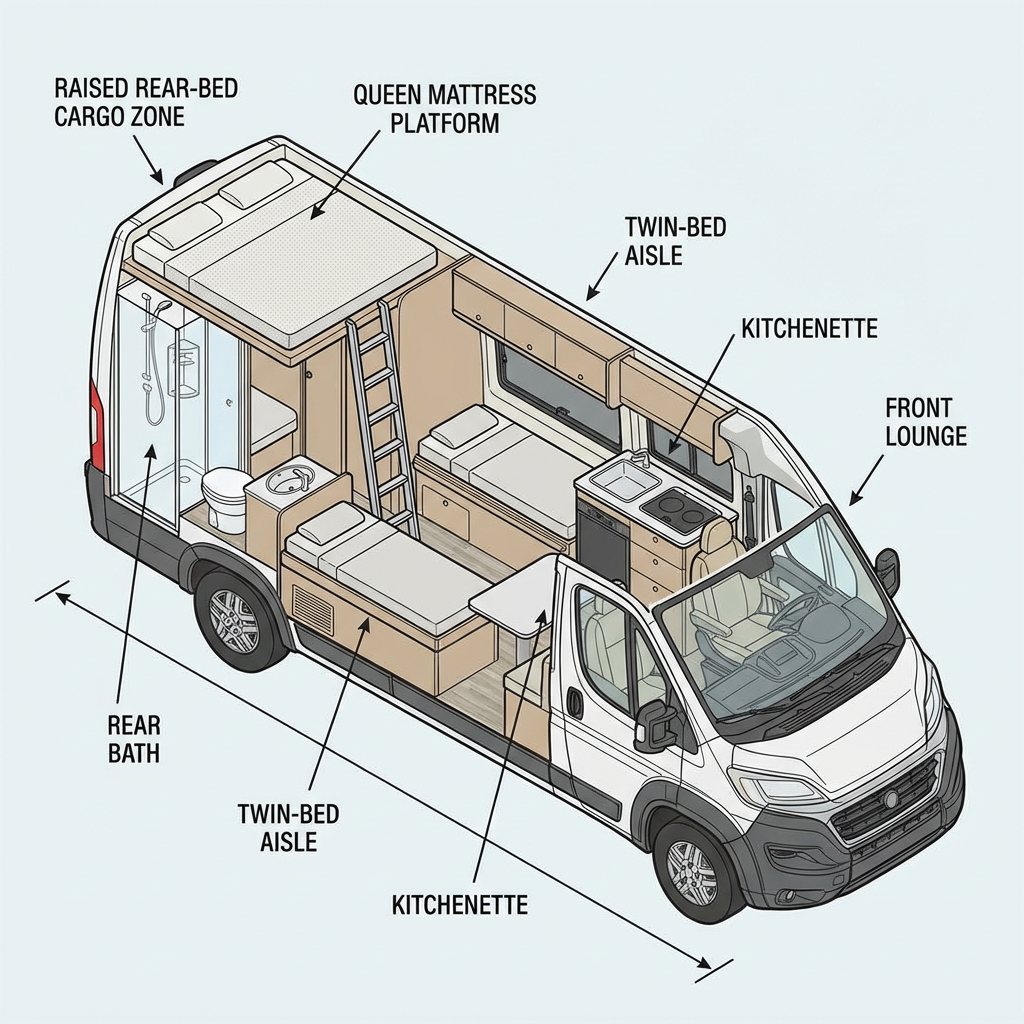

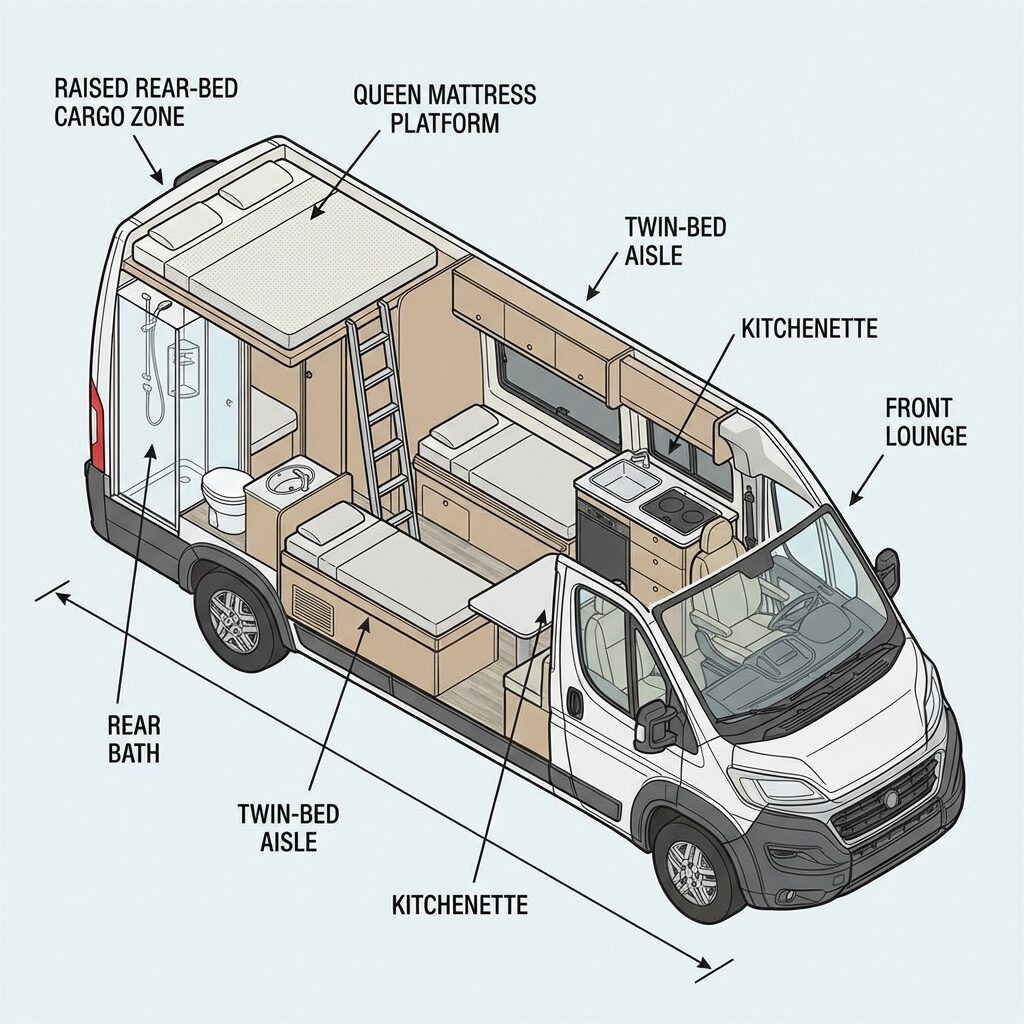

Bed placement and bath position change your daily routine
The biggest buying mistake is thinking a floor plan is just a sleep decision. It is really a movement decision. In a camper van, bed position affects how you dress, cook, work, use the bathroom, load gear, and move around each other. In 2026 examples, rear baths and fixed rear beds usually make the van feel more segmented, while rear lounges and center-aisle designs keep the interior more open but add more nightly setup friction.
Rear bath Class B RV layouts
A rear bath layout puts the bathroom at the very back of the van, which creates a natural separation between living space and bathroom. This usually means more privacy and a more finished feel when you close the bathroom door. The trade-off is that a larger rear bathroom steals square footage from the lounge, cargo area, or sleeping setup. In shorter vans under 21 feet, a rear bath can force tight compromises in the galley or bed zone. This section does not cover cassette-toilet or portable-toilet alternatives, which fall outside standard factory floor plans.
Twin bed Class B RV layouts
Choose twin beds when:
- Two people wake up at different times.
- You want aisle access without climbing over each other.
- You care more about sleep convenience than daytime entertaining space.
Rear lounge Class B RV layouts
Choose a rear lounge when:
- You spend a lot of time hanging out inside the van during the day.
- You want the back of the van to feel more social than bedroom-like.
- You can live with converting the lounge into a bed most nights.
Choose a raised rear bed when:
- You carry bulky gear inside the van.
- You want little or no nightly bed conversion.
- You can accept less open living space in exchange for cargo utility.
Choose a front lounge layout when:
- You work from the road or want a second seating zone.
- You expect to leave the rear bed made during parts of the trip.
- You are comfortable paying more for a longer, more specialized layout.
Wet bath vs dry bath in a Class B van
Wet bath vs dry bath in a Class B RV
Bathroom language gets confusing fast, so keep it simple. Winnebago’s bathroom guide defines a wet bath as one space used for both the shower and toilet, which means the whole compartment gets wet after showering. Pleasure-Way’s floorplan guide frames the same trade-off another way: wet baths save space, while dry baths keep the toilet area separate but take more room. In compact Class B vans, wet baths remain the most common factory configuration because every square foot has to do more than one job.
| Bathroom type | What you gain | What you give up | Who it usually suits |
|---|---|---|---|
| Wet bath | Smaller footprint. More room for lounge, galley, or storage elsewhere. | You wipe down more surfaces after showering. Less residential feel. | Most Class B buyers, especially in 19- to 21-foot vans. |
| Dry bath | Separate shower area. Easier to keep toilet and vanity dry. | Takes more space, which often pushes you into a larger or more expensive coach. | Buyers who shower inside often and care more about comfort than compactness. |
Winnebago’s RV bathroom guide uses the rear wet bath in the Travato as a clear example of the compact camper-van approach, while Airstream’s Atlas bathroom guide (published 2021, referencing the now-discontinued Atlas) explains what a true dry bath looks like in a larger touring coach. Those two examples are useful because they show the basic truth: the more separated your bathroom becomes, the more floor plan budget it consumes. This comparison does not cover composting toilet conversions or external shower-only setups.
If a roomy, separate shower is non-negotiable, stop pretending you will “get used to” a tiny wet bath. That is usually the sign to compare larger touring coaches or even Class C options instead of forcing the wrong van to fit the wrong job.
What “front bed” usually means in Class B search results
A lot of buyers search for a front bed floor plan, but in true Class B vans that phrase usually points to one of two things: a front lounge or workstation combined with a rear sleeping setup, or a lounge configuration that converts into part of the bed at night. Current 2026 product pages from Pleasure-Way show the cleaner version of this idea. The Plateau FL uses the swivel captain’s chairs to create a front lounge and workstation while keeping the main sleep surface toward the rear.
That is why it is smarter to shop by bed behavior instead of by the search phrase. Ask:
- Is the bed fixed, raised, power-deployed, or fully converted from seating?
- Can one person stay in bed while the other uses the galley or bathroom?
- Can you leave one zone in daytime mode and another in sleep mode?
If you are also weighing age, resale, or used inventory, cross-check this page with the site’s used Class B buying guide before narrowing your shortlist.
FAQ
Is a rear bath better in a Class B RV?
A rear bath is usually better if privacy and a clearer bedroom-to-bathroom split matter to you. It can make the back of the van feel more finished. The trade-off is that a bigger rear bathroom usually steals space from the lounge, cargo area, or sleeping setup somewhere else.
What do buyers mean by a front bed or front lounge layout?
In true Class B vans, buyers often say front bed when they really mean a front lounge or front workstation paired with a rear bed arrangement. A fixed front bed is uncommon. Most 2026 camper vans still keep the primary sleep surface in the middle or rear of the coach.
Is a wet bath or dry bath better in a camper van?
A wet bath is better if you want to preserve living space in a compact van. A dry bath is better if you shower inside often and hate wiping down the toilet area afterward. In the Class B segment, wet baths are still much more common because space is so tight.
Are twin beds better than a rear lounge that converts into a bed?
Twin beds are better for couples who sleep differently, want aisle access, or do not want a nightly conversion routine. A rear lounge is better if you want more comfortable daytime seating and only need the bed at night. Neither is better in the abstract. It depends on your routine.
What is the most practical Class B RV floor plan for two people?
For many couples, the most practical layout is still twin beds or a rear power sofa that can stay in bed mode once camp is set. That usually creates less daily friction than a social rear lounge layout while still fitting inside a normal camper-van footprint.
Which 2026 Class B floor plans work best for boondocking?
For boondocking, layouts with better storage access and less furniture conversion usually age better. Raised rear beds, center aisles, and gear-garage designs tend to make more sense once you add leveling blocks, hoses, camp chairs, tools, and cold-weather gear to the daily routine.
The simplest way to choose the right Class B floor plan
Ignore brand first. Test the floor plan first. On your next dealer visit or RV show stop, do four quick checks in this order:
- Bed test: Lie down the way you actually sleep. Check nighttime access to the bathroom.
- Bath test: Close the door, turn around, and mimic drying off after a shower.
- Morning test: Picture one person making coffee while the other stays seated or in bed.
- Storage test: Decide where hoses, cords, chairs, shoes, bedding, and dirty gear will really go.
That process will eliminate more bad options than any brochure. After that, compare reliability, boondocking systems, and price. If you want a broader cost-and-feature lens, the site’s RV comfort upgrades guide is also worth reading before you pay for a layout fix you could have solved at purchase.
Pick the floor plan that makes ordinary mornings easier, not the one that looks best in a 30-second walkthrough.
